350A 600V Battery sightseeing forklift power connector, heavy duty 2 pole charging plug CT E0064

Short Description:



Basic information:
Brand: GCT AUTO PARTS
Model: 50A, 120A, 175A, 350A
Color: gray, very color, blue, red, yellow
Interface material: copper plated silver terminal
Voltage: 600V
Size: 35x16x48mm (50A)
45x20x65mm (120A)
55x26x80mm (175A)
70x34x108mm (350A)












  • Min.Order Quantity: 1000Piece/Pieces
  • Supply Ability: 50000 Piece/Pieces per Week
  • Port: Shanghai, China
  • Payment Terms: T/T
  • Product Detail

    Product Tags

    Product parameters:

    Basic information:

    Brand: GCT AUTO PARTS

    Model: 50A, 120A, 175A, 350A

    Color: gray, very color, blue, red, yellow

    Interface material: copper plated silver terminal

    Voltage: 600V

    Size: 35x16x48mm (50A)

           45x20x65mm (120A)

           55x26x80mm (175A)

           70x34x108mm (350A)

    Widely used in: electric vehicles, sightseeing vehicles, battery forklifts, high current plugs, subway tunnels, electric bus UPS power supplies, solar battery connectors, inverter power connectors, etc.



    Wiring specification:



      50A 120A 175A 350A
    Cable Specifications

    (AWG American Standard)

    6,8,10/12AWG 2,4,6AWG 4,2,1/0AWG 2/0AWG
    Connection line specification

    (mm2)

    2.5-16 Square 10-35 Square 10-50 Square 10-70 Square

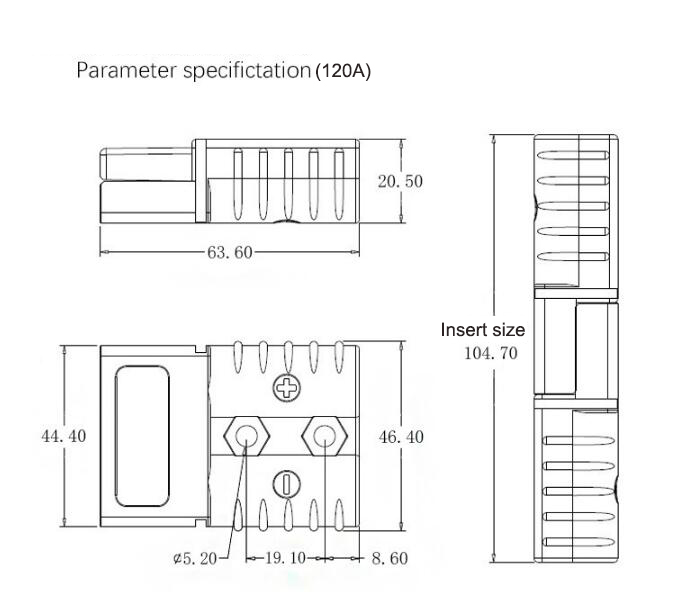

    Dimensional specification chart:

    QQ截图20190320101952 QQ截图20190320102119 QQ截图20190320102153 QQ截图20190320102237
