Welcome to order pulse oximeter for infant, kids and adult.

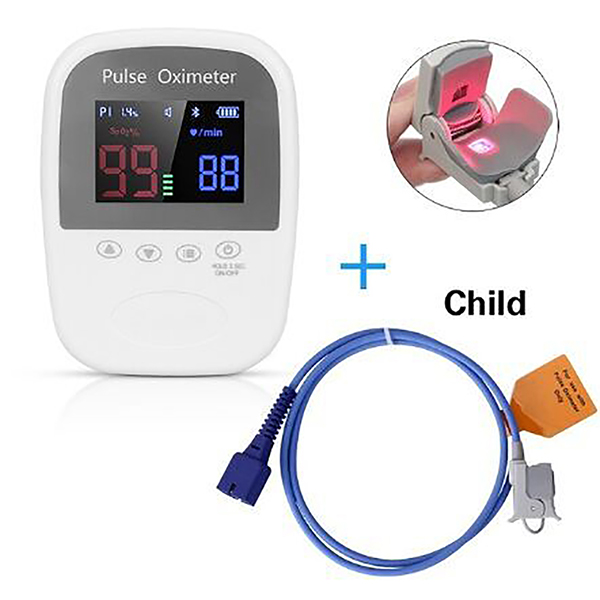

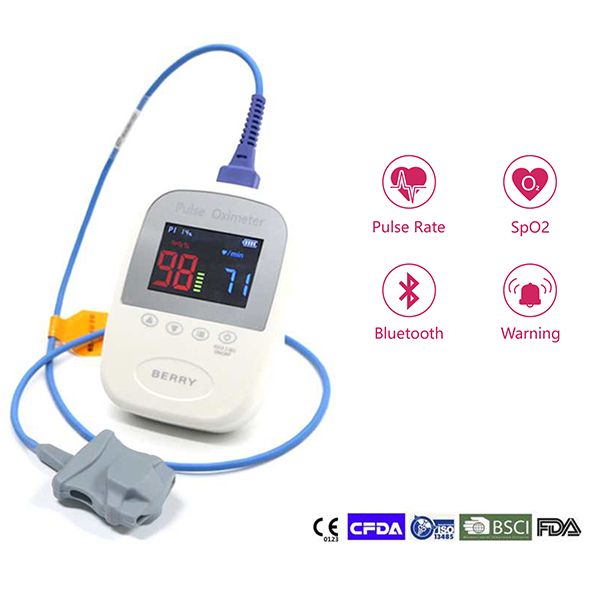

Pulse Oximeter Description
Fingertip Pulse Oximeter is an important and common device to check oxygen saturation (SpO2) and pulse rate.
It’s a small, compact, simple, reliable and durable physiological, it includes monitoring device, include the main board, Spo2 sensor, LCD display and dry batteries. It is suitable for monitoring adults and children.
Pulse Oximeter Feature
➤Simple and conveinient to operate
➤Portable, easy to carry.
➤Power-efficient, 2 x AA batteries can continuously work for 14 hours at least.
➤Intelligent reminding function: buzzer reminding when the value exceeds the normal range and low voltage reminding when there’s low power.
➤Durability, no need do daily maintenance except changing the batteries.
Pulse Oximeter Specification
|
Operation System |
IOS; Android |
|
Size
|
150(H) × 90 (W) × 26(D)mm |
|
Material |
ABS Plastic Material |
|
Operation Environment
|
Temperature: 5℃ - 40℃ Relative humidity: 15% - 80% Air pressure: 860hPa - 1060hPa |
|

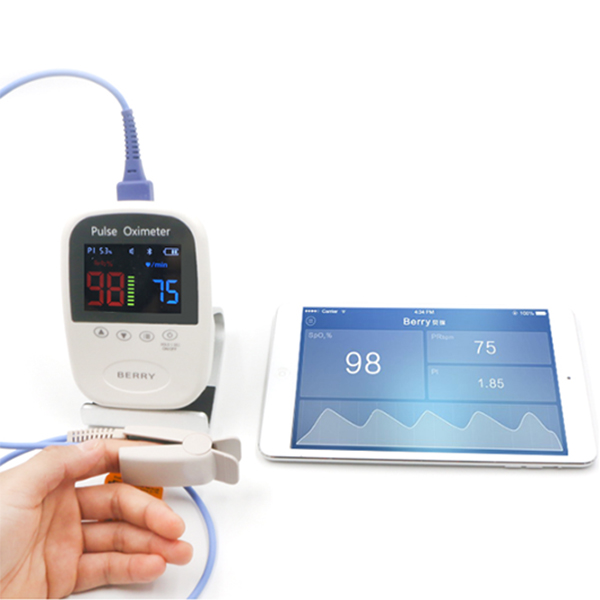

APP
|
IOS：Search “Oxycare” or “SpO2” Android：Search “SpO2 2.0” or “Oxycare” |
|
Display
|
LCD |
|
SpO2 |
Detection scope: 35%-100% Accuracy: ±2% 80%-100% ±3% 70%-79% |
|
Pulse Rate
|
Rage：25-250BPM Accuracy：±2bpm Resolution:1bpm |
|
Bluetooth
|
Bluetooth BLE |
|
Battery Type
|
2 AA alkaline batteries |
|
Warranty
|
1 Year |
|
Working voltage
|
D.C.2.32-D.C.3.4V |
|
Certification |
FDA.CE |
|
Delivery
|
Consult us |
Pulse Oximeter Usage
It can be used in the hospital's operation room, ICU, clinic section office, out-patient department, sickroom and emergency treatment. It can also be used in the recovery and health care organizations, the community medical treatments, the oxygen bars, the family nursing.
Frequently Asked Questions
➤Pulse oximeter is to measure blood oxygen saturation or arterial hemoglobin saturation by finger clip.
➤Oxygen saturation is very important physiological parameter of human body.
➤Pulse oximeter can also detect arterial pulsation, then calculate the patient's heart rate.
➤The oximeter has a light source that emits light at two wavelengths. HbO2 and Hb have different absorbances for these two wavelengths.
➤When the artery beats, the blood volume can change and emerge a certain waveform. The oxygen oximeter calculates SpO2 based on the waveform and absorption rate.
➤During measuring, be sure to choose thin soft tissue parts or rich of arterial blood flow, such as hands, toes, and earlobe.
➤Blood perfusion index is an index for the accuracy of SPO2 measuring results.
➤The blood perfusion index is calculated based on the pulsation waveform which reflects the blood perfusion at the measurement point.
➤The higher the PI measured at the measurement point, the more accurate the SpO2 measured.
➤The accuracy of the oximeter is affected by many factors, such as motion interference (finger shake, etc.), ambient light and optical detection circuit.
➤Wait for several seconds until the pulse waveform to stabilize before the reading.
➤oxygen is within 70%-100%, he accuracy reach ±2%~±3%.
➤ When SpO2 is as low as 50%, the accuracy is about ±10%
