12V 7 pin plastic trailer socket box, N type side flat style

Short Description:

This Europe Style 7-Pin Trailer Plug used to establish a secure connection between your trailer and semi or other tow vehicle.


  • Min.Order Quantity: 1000Piece/Pieces
  • Supply Ability: 50000 Piece/Pieces per Week
  • Port: Shanghai, China
  • Payment Terms: T/T
  • Product Detail

    Product Tags

    Description:

    This Europe Style 7-Pin Trailer Plug used to establish a secure connection between your trailer and semi or other tow vehicle.

    Features:

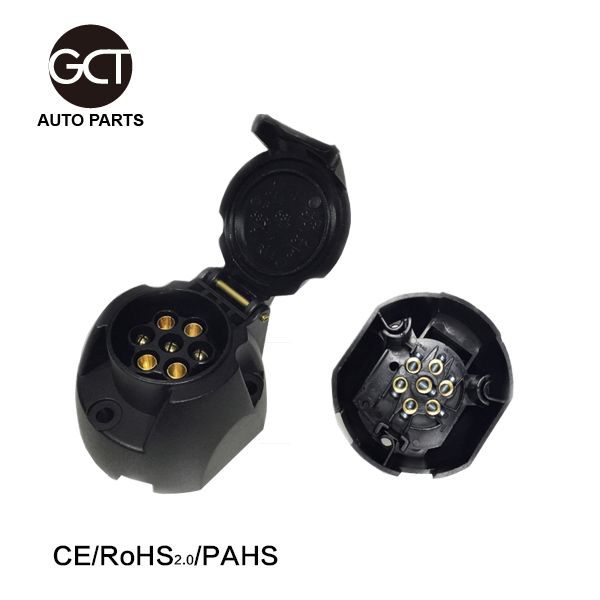

    This is a plastic 7 pin socket (N type) to power trailer or caravan lights.
    Ideal for new towbars or for replacing damaged sockets on existing cars.
    Screw connection inside the plug, easy for replacement.
    High quality brass pins and plastic housing, durable in use.
    Provides connections for indicators, side lights, brake lights and fog lamp etc.

    We also provide a matching 7P plug
    Packing: We can provide blister box, card box and plastic bag according to your request.

    We can customize products according to your demands. Each function and making details are special and unique.



    Product information
    Model:  CT3001B
    Type: Socket(European Style)
    Shape: flat round
    Production process: Injection molding
    Features:   Waterproof
    Contact material: Copper
    Insulator material: Engineering plastic
    Material: Plastic
    Number of cores: 7
    Number of stitches: 7
    Voltage output: 12V
    Main function: Connecting truck and power supply, suitable for trailer signal display
    Applications: Commercial vehicles / trailers / RVs / trucks / trucks / semi-trailers /Car/ship/caravan/yacht, etc.



    7 Pin Lighting Connections – 12 N Black Cable Function



    PIN 1 – Yellow Wire (Left/Hand Direction Indicator)

    PIN 2 – Blue Wire ( Rear Fog Lamps)

    PIN 3 – White Wire ( Earth Return)

    PIN 4 – Green Wire (Right/H Direction Indicator)

    PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp)

    PIN 6 – Red Wire (Stop Lamp)

    PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp)



    Caravan 7 pin supplementary circuits 12S grey cable function

    Pin 1- Yellow Reversing Lamps

    Pin 2- Blue Battery Charging (original UK system)

    Pin 3 -White Earth Return (for pins 2&4)

    Pin 4- Green Power Supply

    Pin 5 -Brown Spare

    Pin 6- Red Fridge

    Pin 7- Black Earth Return (for pin 6)
