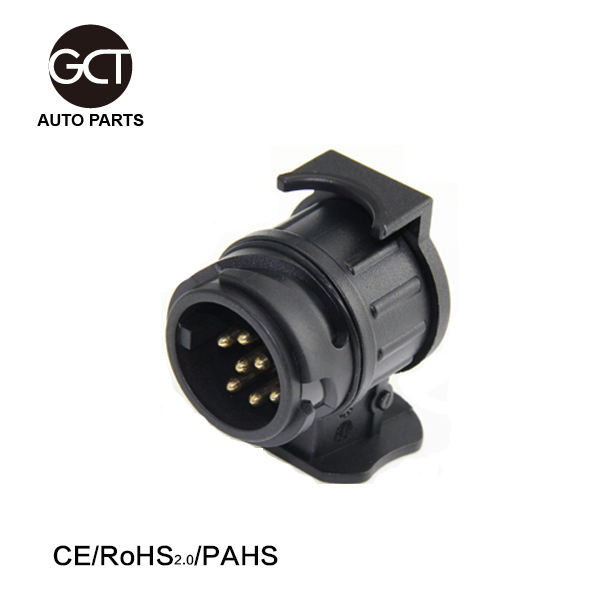

Waterproof 12V 13 Pin to 7 Pin Plug Trailer Caravan Electric mini Adapter Towbar Towing Socket

Short Description:

This 13 to 7 pin plug is suitable for European standard trailer, establishing connection between vehicle and additional trailer and transferring electronic signal lights from vehicle to trailer
Converts the 13-pin socket on your car to the 7-pin female socket. Plug this little adapter into the 13 pin plug and then plug in your standard 7 pin
Having the same diameter as most normal trailer plug do, it has just over half the length compared with the trailer plug
Sprung flap locks the 7 pin plug when in use but protects the connections when not in use


  • Min.Order Quantity: 1000Piece/Pieces
  • Supply Ability: 50000 Piece/Pieces per Week
  • Port: Shanghai, China
  • Payment Terms: T/T
  • Product Detail

    Product Tags

    This 13 to 7 pin plug is suitable for European standard trailer, establishing connection between vehicle and additional trailer and transferring electronic signal lights from vehicle to trailer
    Converts the 13-pin socket on your car to the 7-pin female socket. Plug this little adapter into the 13 pin plug and then plug in your standard 7 pin
    Having the same diameter as most normal trailer plug do, it has just over half the length compared with the trailer plug
    Sprung flap locks the 7 pin plug when in use but protects the connections when not in use



    Product information
    Model:  CT3033
    Type: Adapter(European Style)
    Shape: Round
    Production process: Injection molding
    Features:  Waterproof
    Contact material: Copper
    Insulator material: Engineering plastic
    Material: plastic
    Number of cores: 13
    Number of stitches: 7
    Voltage output: 12V
    Main function: Connecting truck and power supply, suitable for trailer signal display
    Applications: Commercial vehicles / trailers / RVs / trucks / trucks / semi-trailers /Car/ship/caravan/yacht, etc.



    7 Pin Lighting Connections – 12 N Black Cable Function



    PIN 1 – Yellow Wire (Left/Hand Direction Indicator)

    PIN 2 – Blue Wire ( Rear Fog Lamps)

    PIN 3 – White Wire ( Earth Return)

    PIN 4 – Green Wire (Right/H Direction Indicator)

    PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp)

    PIN 6 – Red Wire (Stop Lamp)

    PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp)



    Caravan 7 pin supplementary circuits 12S grey cable function

    Pin 1- Yellow Reversing Lamps

    Pin 2- Blue Battery Charging (original UK system)

    Pin 3 -White Earth Return (for pins 2&4)

    Pin 4- Green Power Supply

    Pin 5 -Brown Spare

    Pin 6- Red Fridge

    Pin 7- Black Earth Return (for pin 6)



    13 Pin Lighting Connections – Cable Function



    PIN 1 – Yellow Wire (Left/Hand Direction Indicator)

    PIN 2 – Blue Wire ( Rear Fog Lamps)

    PIN 3 – White Wire ( Earth Return)

    PIN 4 – Green Wire (Right/H Direction Indicator)

    PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp)

    PIN 6 – Red Wire (Stop Lamp)

    PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp)

    PIN8 -Pink Wire ( Reversing Light)

    PIN9-orange wire ( 12v permanent power from battery 12v)

    PIN10-grey wire(12v ignition on (battery charging or fridge)

    PIN11- White/ black wire (earth for terminal 10)

    PIN12-white /blue wire (NOT usually used)

    PIN13- White/red wire (earth for terminal 9)
