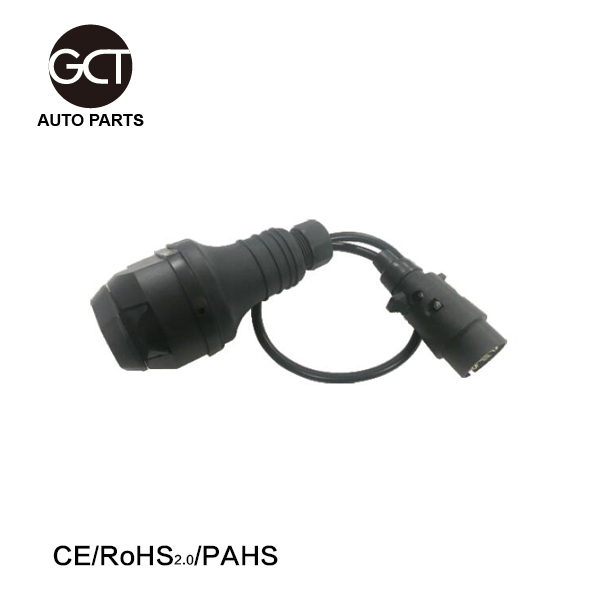

13 Pin Socket box 7 Pin cable socket type 12V Trailer connector RVV Cable Set

Short Description:

Connecting trucks and power supply, suitable for trailer signal display.

Widely used in commercial vehicles / trailers / RVs / Trucks / Trucks / Semitrailers /Car / ship and more


  • Min.Order Quantity: 1000Piece/Pieces
  • Supply Ability: 50000 Piece/Pieces per Week
  • Port: Shanghai, China
  • Payment Terms: T/T
  • Product Detail

    Product Tags

    Connecting trucks and power supply, suitable for trailer signal display.

    Widely used in commercial vehicles / trailers / RVs / Trucks / Trucks / Semitrailers /Car / ship and more

    1) Type: 13 Pin Plug To 5 Pin Plug

    2) Voltage output: 12V

    3) Number of stitches: 13

    4) Length: 1.6m

    5) Connector material: copper

    6) Imprint: Imprint is available



    Product information
    Model:  CT1009(CT3008+RVV Cable+CT3011)
    Type: 7×0.5mm 2 RVV cable(European Style)
    Lenght: 1.6m
    Production process: Injection molding
    Features:  Waterproof
    Contact material: Copper
    Insulator material: Engineering plastic
    Material: plastic
    Number of cores: 13
    Number of stitches: 7
    Voltage output: 12V
    Main function: Connecting truck and power supply, suitable for trailer signal display
    Applications: Commercial vehicles / trailers / RVs / trucks / trucks / semi-trailers /Car/ship/caravan/yacht, etc.



    13 Pin Lighting Connections – Cable Function



    PIN 1 – Yellow Wire (Left/Hand Direction Indicator)

    PIN 2 – Blue Wire ( Rear Fog Lamps)

    PIN 3 – White Wire ( Earth Return)

    PIN 4 – Green Wire (Right/H Direction Indicator)

    PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp)

    PIN 6 – Red Wire (Stop Lamp)

    PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp)

    PIN8 -Pink Wire ( Reversing Light)

    PIN9-orange wire ( 12v permanent power from battery 12v)

    PIN10-grey wire(12v ignition on (battery charging or fridge)

    PIN11- White/ black wire (earth for terminal 10)

    PIN12-white /blue wire (NOT usually used)

    PIN13- White/red wire (earth for terminal 9)

    7 Pin Lighting Connections – 12 N Black Cable Function



    PIN 1 – Yellow Wire (Left/Hand Direction Indicator)

    PIN 2 – Blue Wire ( Rear Fog Lamps)

    PIN 3 – White Wire ( Earth Return)

    PIN 4 – Green Wire (Right/H Direction Indicator)

    PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp)

    PIN 6 – Red Wire (Stop Lamp)

    PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp)



    Caravan 7 pin supplementary circuits 12S grey cable function

    Pin 1- Yellow Reversing Lamps

    Pin 2- Blue Battery Charging (original UK system)

    Pin 3 -White Earth Return (for pins 2&4)

    Pin 4- Green Power Supply

    Pin 5 -Brown Spare

    Pin 6- Red Fridge

    Pin 7- Black Earth Return (for pin 6)
