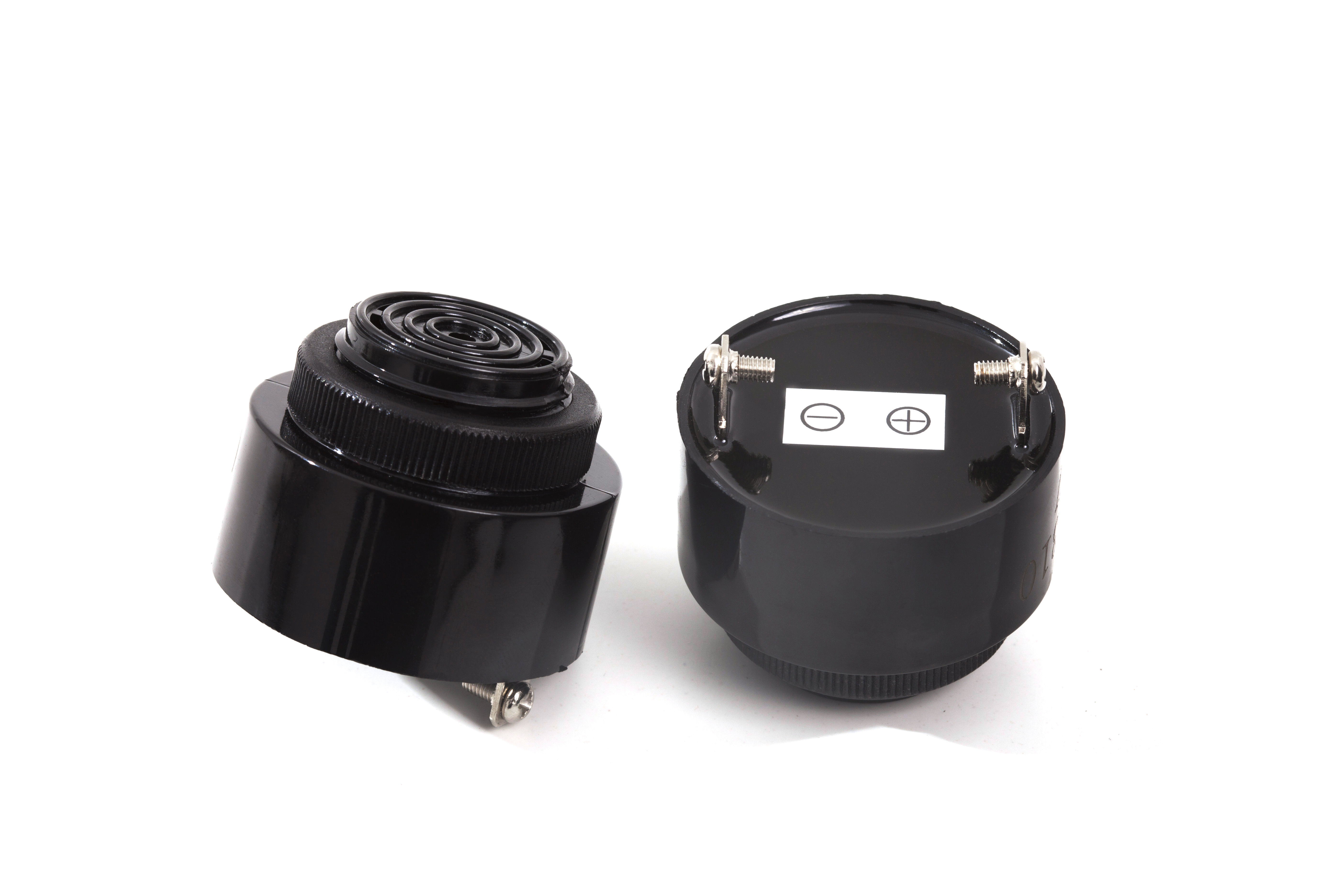

43mm 24V High Decibel Piezoelectric Active Buzzer with Screw Holes CT E0042

Short Description:

Technical Specifications:
Product test conditions: temperature: 5 ~ 35 ° C, humidity: 45% ~ 85% R. H., air pressure: 860 ~ 1060hPa.
Standard test conditions: temperature: 25 ± 3 ° C, humidity: 60 ± 10% R. H. Air pressure: 860 ~ 1060 hPa.




  • Min.Order Quantity: 1000Piece/Pieces
  • Supply Ability: 50000 Piece/Pieces per Week
  • Port: Shanghai, China
  • Payment Terms: T/T
  • Product Detail

    Product Tags

    Technical Specifications:

    Product test conditions: temperature: 5 ~ 35 ° C, humidity: 45% ~ 85% R. H., air pressure: 860 ~ 1060hPa.

    Standard test conditions: temperature: 25 ± 3 ° C, humidity: 60 ± 10% R. H. Air pressure: 860 ~ 1060 hPa.



    1

    Diameter

    Φ43.0

    2

    Net Weight

    Approx 36g

    3

    Rated Voltage

    24VDC

    4

    Operating Voltage

    6~28 VDC

    5

    Rated Current

    Max.20mA at 24VDC

    6

    Sound pressure output

    Min. 105dB at 24VDC,10cm

    7

    Resonant frequency (Hz)

    2800±500Hz

    8

    Tone

    Continuous

    9

    Working temperature (°C)

    -20℃~+70℃

    10

     Storage temperature (°C)

    -30℃~+80℃

     1
